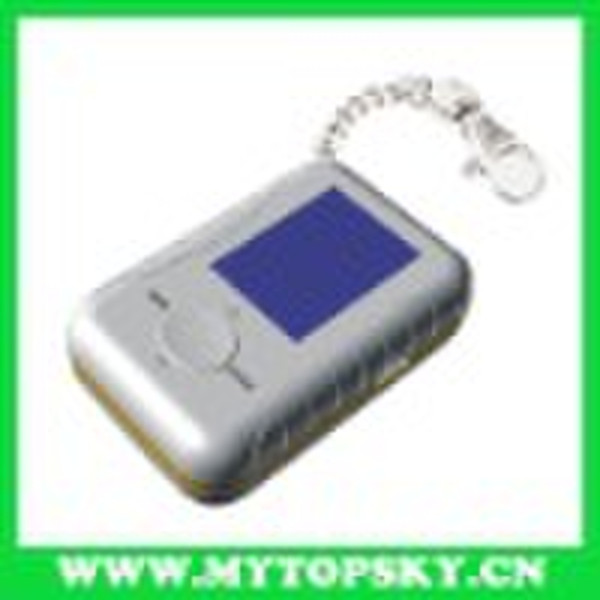

GPS LOGGER

General GPS Chipset: SiRF Star IV Frequency: L1,1575.42 MHZ C/A Code: 1.023MHz chip rate Channels: 48 CH for tracking Antenna: Built-in patch with LNA Datum: WGS-84 Acquisition Rate Cold Start: 35 sec, average Warm Start: 34 sec, average Hot Start: 1.5 sec, average Reacquisition: <1sec Accuracy (none DGPS) Position: Without aid: 3.0m; 2D-RMS DGPS:2.5m,2D-RMS Velocity: Without aid: 0.1m/s; DGPS:0.05m/s Sensitivity: -163 dBm (tracking) Dynamic Altitude: < 18,000m Velocity: < 736m/sec Acceleration: 4g Protocol GPS Output: NMEA-0183(V3.01) - GGA, GSA, GSV, RMC (default) Data bit : 9600bps, 8, stop bit : 1 (Default) Power Battery: 2 x AAA Operation Time: More than 8 Hours (Full power) Power Charge: Mini USB Environmental Operating: -20°C to +60°C Storage: -20°C to +80°C Humidity: 5% to 95% non-condensing Back Track 5 positions for back track. Data Log 52,000 way points. To save 30 days' logger data (Assuming 4 hours per day) Log routine of every position. Log GPS position by press button. PC software base on Google earth and Google map. G-Mouse COM port, 9600bps. For PC and PDA's GPS accessory. e-Compass: Point North direction. Photo Tagger ready: Output KML for Photo tagger software. Others 1.37" LCD: Direction pointer, Date, Time, Battery capacity, Signal strength, Position index, Distance. Accessory: CD, USB cable, Quick Start Guide
